Microsoft Agent 365 Guardrail

Sends every MCP tool call to the Microsoft Agent 365 evaluation API before LiteLLM runs it. Microsoft Defender returns allow or block, and the call is recorded on the Microsoft side under the signed-in user

Supported modes

Mode	What it does
`pre_mcp_call`	Evaluates the tool name, arguments and server with Defender before execution. Blocks on a block verdict

The guardrail only runs on MCP tool calls. Chat completions and other LLM routes are untouched

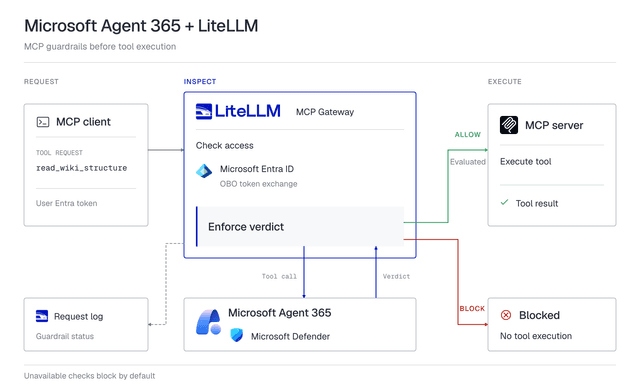

How it works

Agent 365 evaluates in the context of a signed-in user, so every guarded tool call needs that user's Entra access token, audienced to your gateway app registration, in the Authorization header. The guardrail exchanges it On-Behalf-Of (OBO) for a delegated Agent 365 token and evaluates as that user. There is no service or agent identity mode: a call without a user token is refused

The LiteLLM key travels separately in x-litellm-api-key. On a proxy that already accepts Entra tokens through JWT auth, the Entra token is the LiteLLM credential too

Per tool call

LiteLLM admission: key or JWT check, then the key's MCP server and tool permissions. A bad credential fails here with the usual 401 or 403
The guardrail reads the Entra token from Authorization. Missing or not a JWT: the call is refused
OBO exchange, cached for the token's lifetime
The pending call goes to Agent 365: tool name, arguments, server name, conversationId, the tool's description and input schema when LiteLLM already has them from an earlier listing of the server's tools, and the caller's key alias as the agent id when the key has one. The user's prompt is never sent
Allow with defender.status: Evaluated: LiteLLM runs the tool. Block: the call is refused with the Defender message and correlation id, and the MCP server is never contacted. Allowed but not evaluated (Skipped, FailedOpen): treated as unscanned, unreachable_fallback decides (blocked by default)

How a refusal reaches the client depends on the route. /mcp-rest/tools/call answers with the HTTP status in Failure behavior and the full JSON body. On the /mcp transport the HTTP response is 200 and the tool result has isError: true with only the short error, for example Error: Blocked by Microsoft Defender. The full body, with the Defender message and correlation id, is in the error details of the call's Logs row

MCP server auth types

The guardrail does not check the server's auth_type. It always takes the user token from the client's Authorization header, so pick an auth type that keeps that header at the gateway

`auth_type`	With the guardrail
`none`, `api_key`, `bearer_token`, `basic`, `authorization`, `token`, `aws_sigv4`, `oauth2` with `oauth2_flow: client_credentials`	Works. The upstream gets the server's own credential, never the user's Entra token. Don't list `Authorization` under `extra_headers`; forwarding another client header such as `x-api-key` is fine
`oauth2_token_exchange`	Works. The same Entra token is the subject token LiteLLM exchanges for the upstream (MCP OBO auth)
`true_passthrough`, `Authorization` under `extra_headers`	Evaluated and blocked like any other server, but the user's Entra token is also forwarded to the upstream on every request, tool listing included. With JWT auth that token is also the user's LiteLLM credential. Avoid these
`oauth_delegate`, or `oauth2` with `delegate_auth_to_upstream: true` and any flow other than `client_credentials`	Same as `true_passthrough` when the call carries a LiteLLM key in `x-litellm-api-key`: the Entra token is forwarded upstream. For JWT-only callers LiteLLM strips it, so the upstream gets no credential at all. Avoid
`oauth2` with `oauth2_flow: authorization_code`	LiteLLM sends the upstream the user's stored OAuth token for that server in place of the client's `Authorization`, so the Entra token can stay in `Authorization`. The credential is stored under the caller's LiteLLM `user_id`, so a virtual key needs one (MCP OAuth). Until the user has a stored credential, calls fail before the guardrail runs: `/mcp` answers `initialize` with 401 and `/mcp-rest/tools/call` answers 500 `Tool ... not found`
`oauth2_id_jag`	Tool listing uses the user's stored SSO assertion; without one, listing fails with 412 and the call fails with `Tool ... not found` (REST 500) before the guardrail runs. With one, the guardrail evaluates, then the Entra token in `Authorization` replaces the SSO assertion as the ID-JAG subject, sent as an `id_token` unless `subject_token_type` is set. Unless the identity provider accepts that token the exchange fails and the client gets 503 after the evaluation. Leave the guardrail off these servers or move them to `oauth2_token_exchange`

Prerequisites

One-time Entra setup by a tenant administrator

Ask your Microsoft Agent 365 contact to onboard your tenant. Until then the evaluation endpoint answers 409 BAPForbiddenTenantAccess
Register a gateway app under Microsoft Entra ID > App registrations, single tenant, no redirect URI. Record the client id and tenant id, and create a client secret under Certificates & secrets. These are the guardrail's client_id, tenant_id and client_secret
Under Expose an API, set the Application ID URI to api://<client_id> and add a scope named access_as_user. This is the scope your MCP clients request
Still under Expose an API, pre-authorize the client id of each application your users call from. For terminal testing, pre-authorize the Azure CLI (Microsoft's public app id 04b07795-8ddb-461a-bbee-02f9e1bf7b46)
Under API permissions > Add a permission > APIs my organization uses, add the Agent Tools API (Microsoft's public app id ea9ffc3e-8a23-4a7d-836d-234d7c7565c1), delegated permission ThreatProtection.Evaluate.All, and grant admin consent. It must be delegated, not application: an application permission mints a token Agent 365 rejects

Check the setup before touching LiteLLM

az login --tenant <tenant_id>
az account get-access-token --tenant <tenant_id> --resource api://<gateway_client_id>

Decode the token and check aud is api://<gateway_client_id> and scp contains access_as_user. That is the token your MCP client sends

Quick Start

1. Define the guardrail in `config.yaml`

A database is needed for the virtual key in step 3

general_settings:
  master_key: os.environ/LITELLM_MASTER_KEY
  database_url: os.environ/DATABASE_URL

guardrails:
  - guardrail_name: agent365-mcp
    litellm_params:
      guardrail: agent_365
      mode: pre_mcp_call
      default_on: true
      tenant_id: os.environ/AGENT365_TENANT_ID
      client_id: os.environ/AGENT365_CLIENT_ID
      client_secret: os.environ/AGENT365_CLIENT_SECRET

mcp_servers:
  deepwiki:
    transport: "http"
    url: "https://mcp.deepwiki.com/mcp"

2. Start the proxy

export AGENT365_TENANT_ID="<your Entra tenant id>"
export AGENT365_CLIENT_ID="<gateway app client id>"
export AGENT365_CLIENT_SECRET="<gateway app client secret>"
export LITELLM_MASTER_KEY="sk-<your-master-key>"
export DATABASE_URL="postgresql://<user>:<password>@<host>:5432/<db>"

litellm --config config.yaml

3. Create a key for the MCP server

curl -X POST http://localhost:4000/key/generate \
  -H "Authorization: Bearer $LITELLM_MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{"key_alias": "my-agent", "object_permission": {"mcp_servers": ["deepwiki"]}}'

The key_alias is the agent id Agent 365 records with each evaluation

4. Call an MCP tool

export LITELLM_API_KEY="<key from step 3>"
TOKEN=$(az account get-access-token --tenant <tenant_id> --resource api://<gateway_client_id> --query accessToken -o tsv)
curl -X POST http://localhost:4000/mcp-rest/tools/call \
  -H "x-litellm-api-key: Bearer $LITELLM_API_KEY" \
  -H "Authorization: Bearer $TOKEN" \
  -H "Content-Type: application/json" \
  -d '{
    "server_id": "deepwiki",
    "name": "read_wiki_structure",
    "arguments": {"repoName": "BerriAI/litellm"}
  }'

An allowed call returns the tool result. A blocked one returns HTTP 400

{
  "detail": {
    "error": "Blocked by Microsoft Defender",
    "message": "Invocation of 'read_wiki_structure' is blocked by Microsoft Threat Detection policies configured by your administrator.",
    "tool": "read_wiki_structure",
    "correlation_id": "<id to look the call up on the Microsoft side>",
    "guardrail_name": "agent365-mcp",
    "guardrail_mode": "pre_mcp_call"
  }
}

Logs

Every guarded tool call, allowed, blocked or refused, on both /mcp and /mcp-rest/tools/call, gets a row under Logs in the Admin UI (UI logs). The row always shows the guardrail name, mode and status. It shows how long the Agent 365 call took, except when Agent 365 was not called, did not answer (unreachable or timed out), or answered with a 5xx or an unparseable body. The status is success for an allowed call, guardrail_intervened for a Defender block, a refused caller or a request Agent 365 rejected, and guardrail_failed_to_respond when Agent 365 or Entra could not be asked, throttled the call, returned a 5xx or an unparseable answer, or rejected the gateway's own credentials, or when Defender did not evaluate. A refused call's error details carry the full error body, including the Defender message and correlation id of a block

The guardrail's response on the row, with the verdict (Allow, Block, Rejected, Throttled, Unavailable, Unscanned), the Defender status, the correlation id, the latency and the failure reason, is stored only when store_prompts_in_spend_logs is on. Without it the response shows as REDACTED_BY_LITELM

general_settings:
  store_prompts_in_spend_logs: true

Caller scenarios

How the user token reaches the request

A. Applications on a proxy with Entra JWT auth

With enable_jwt_auth and Entra as the issuer (OIDC JWT auth), the application's Entra bearer is both the LiteLLM credential and the OBO subject. No x-litellm-api-key is needed. The token must be issued for the gateway app (aud api://<gateway_client_id>, scp with access_as_user); a token for Microsoft Graph or another API fails JWT admission

general_settings:
  master_key: os.environ/LITELLM_MASTER_KEY
  database_url: os.environ/DATABASE_URL
  enable_jwt_auth: true
  litellm_jwtauth:
    user_id_jwt_field: oid
    user_email_jwt_field: email
    user_id_upsert: true
    team_id_default: entra-users

export JWT_PUBLIC_KEY_URL="https://login.microsoftonline.com/<tenant_id>/discovery/keys"
export JWT_AUDIENCE="api://<gateway_client_id>"
export JWT_ISSUER="https://sts.windows.net/<tenant_id>/"

team_id_default is the team whose MCP permissions JWT callers inherit. Create it with access to the MCP servers before the first call, otherwise every call gets HTTP 404 Team doesn't exist in db

curl -X POST http://localhost:4000/team/new \
  -H "Authorization: Bearer $LITELLM_MASTER_KEY" \
  -H "Content-Type: application/json" \
  -d '{"team_id": "entra-users", "team_alias": "entra-users", "object_permission": {"mcp_servers": ["<server_id>"]}}'

Take <server_id> from GET /v1/mcp/server. Use https://login.microsoftonline.com/<tenant_id>/v2.0 as the issuer if the app issues v2 tokens. These callers have no virtual key, so their evaluations carry no agent id

B. Clients that mint the token themselves

A script, or an MCP client with a static header, gets a gateway-audience token with MSAL or the Azure CLI (pre-authorized in prerequisite step 4) and sends it next to the LiteLLM key, exactly as in the Quick Start. The client owns refresh; Entra access tokens live about an hour. The same headers work on the /mcp transport and in claude mcp add ... -H "Authorization: Bearer $TOKEN". The REST facade is documented on MCP REST API

C. LiteLLM key only

Admitted by LiteLLM, then refused by the guardrail with no tool execution. /mcp-rest/tools/call answers HTTP 401

{"detail": {"error": "Agent 365 guardrail rejected the tool call", "message": "Tool call 'read_wiki_structure' was blocked because the caller did not present an Entra bearer token; the Agent 365 guardrail authorizes tool calls On-Behalf-Of the signed-in user.", "tool": "read_wiki_structure", "guardrail_name": "agent365-mcp", "guardrail_mode": "pre_mcp_call"}}

On the /mcp transport the tool result is isError: true with Error: Agent 365 guardrail rejected the tool call. The guardrail does not send a sign-in challenge, so the client has to obtain and attach the Entra token itself as in scenario B. The refusal only applies where the guardrail runs; the key keeps working on every LLM route and on tool calls the guardrail is not applied to

Two layers of authorization

LiteLLM decides which keys, users and teams reach which servers and tools (MCP permission management). What the tool may do inside the upstream system is decided by the upstream from the credential LiteLLM presents. With a shared API key the upstream sees a service identity; to have it see the signed-in user, use auth_type: oauth2_token_exchange (MCP OBO auth). The guardrail evaluates the call either way

Configuration parameters

Parameter	Required	Description
`tenant_id`	Yes	Entra tenant id. Falls back to `AGENT365_TENANT_ID`
`client_id`	Yes	Client id of the gateway app registration. Falls back to `AGENT365_CLIENT_ID`
`client_secret`	Yes	Client secret of that app. Also accepted as `api_key`. Falls back to `AGENT365_CLIENT_SECRET`
`timeout`	No	Seconds per token exchange and evaluation request. Defaults to 10
`unreachable_fallback`	No	What happens when Agent 365 or Entra is unreachable, when Entra rejects the gateway's own credentials, or when Defender did not evaluate. `fail_closed` (default) blocks with HTTP 503. `fail_open` lets the call through unscanned and logs it at error level. Blocks, rejections, throttling and caller-side failures always block

There is nothing else to point at. Evaluations go to https://agent365.svc.cloud.microsoft, the OBO exchange goes to https://login.microsoftonline.com and mints a token for Microsoft's Agent Tools application, and the agent id reported with an evaluation is the caller's key alias. Older api_base, resource_app_id and agent_id keys in config.yaml are ignored with a warning at startup

Failure behavior

By default the guardrail fails closed: when Agent 365 cannot be asked, the call is blocked and the MCP server is never contacted. The guardrail sits in the request path of every tool call, so a tenant that prefers availability over coverage opts in with unreachable_fallback: fail_open, and the call then runs and is recorded as unscanned

The status codes below are what /mcp-rest/tools/call returns. On the /mcp transport every refusal is an isError tool result carrying the error text, see How it works

Situation	Result
Defender blocks	HTTP 400 `Blocked by Microsoft Defender` with the Defender message and correlation id. Always blocks
Agent 365 rejects the request (4xx other than 408/429)	HTTP 400 `Agent 365 rejected the tool evaluation request`. Always blocks
Allowed but Defender did not evaluate (`Skipped`, `FailedOpen`)	`fail_closed` (default): HTTP 503. `fail_open`: allowed, recorded as unscanned
No Entra token (missing or not a JWT), or Entra rejects the caller's token (`invalid_grant`, expired, wrong audience, consent missing, malformed assertion)	HTTP 401 `Agent 365 guardrail rejected the tool call`. Always blocks. When Entra rejects the token, the message names only its error code, for example `invalid_grant`, or `invalid_client` for a malformed assertion; the full `AADSTS` description is in the error details of the Logs row
Entra rejects the gateway's credentials (`invalid_client`, `unauthorized_client`, `invalid_scope`, `invalid_resource`)	`fail_closed` (default): HTTP 503 `Agent 365 guardrail could not authorize the tool call`, naming the setting to check. `fail_open`: allowed, recorded as unscanned. Never a 401, so clients do not re-prompt
Agent 365 or Entra returns 408 or 429	HTTP 503, recorded as Throttled. Always blocks
Agent 365 or Entra unreachable, timeout, 5xx or unparseable verdict	`fail_closed` (default): HTTP 503. `fail_open`: allowed, recorded as unscanned

Watching fail-open calls

With fail_open, every call let through unscanned is logged at error level with the reason. Its Logs row has request status Success and guardrail status guardrail_failed_to_respond, and its OpenTelemetry guardrail span carries the same guardrail_status. The Status filter on the Logs page only splits Success and Failure, so open the guardrail under Guardrails Monitor and pick Flagged in its logs list, which keeps the guardrail_failed_to_respond rows among the latest 50 calls (raise Sample to see more than 10); a steady stream there means Agent 365 is not evaluating your tool calls. Fail-closed refusals and throttled calls are flagged too, so check the verdict (Unscanned, Unavailable or Throttled) or the request status, Failure for a refusal, to tell them apart. The span always carries the verdict; on the Logs row it needs store_prompts_in_spend_logs

Conversation grouping

Agent 365 groups evaluations by conversationId. The guardrail sends the Mcp-Session-Id when the transport has one, so all calls in one MCP session land in one Defender conversation. Stateless calls (/mcp-rest/tools/call, or a streamable request without a session) use LiteLLM's request id for that call, the same id the Logs row shows
