Deployment

Set up Lens

Lens runs alongside LiteLLM. The worker investigates recorded activity, ClickHouse stores traces, and PostgreSQL stores findings and settings. The worker only needs access to LiteLLM, with no provider keys or database credentials

Component	What it does	What we use
LiteLLM proxy	Receives traces, serves the Lens UI and API	ghcr.io/berriai/litellm with tracing enabled
ClickHouse (new)	Stores traces and request logs	clickhouse/clickhouse-server:26.9.6.6
Lens worker (new)	Runs investigations on your infrastructure. It polls LiteLLM over HTTPS and needs no database access or provider keys	ghcr.io/berriai/litellm-lens-worker-dev, deploy/lens/compose.yaml
PostgreSQL	Stores lenses, findings, and keys	Your existing LiteLLM database, or PostgreSQL from the local tracing stack

Choose your starting point below. New installations can start all four services with Docker Compose. Existing users can keep their deployment and add only the services they need. If Lens is already installed, go to upgrading

Build LiteLLM and its worker from the same source commit and use the same release identity

New local installation

The existing tracing stack starts LiteLLM, PostgreSQL, and ClickHouse. Build its standalone Lens worker from the same checkout, then connect it through the dashboard

1. Build and start LiteLLM

Install Docker with Compose and Git. Run:

git clone https://github.com/BerriAI/litellm.git
cd litellm
export LITELLM_RELEASE_TAG="sha-$(git rev-parse HEAD)"
export LENS_WORKER_IMAGE="litellm-lens-worker:${LITELLM_RELEASE_TAG}"
export OPENAI_API_KEY='sk-...'
docker build --build-arg LITELLM_RELEASE_TAG="$LITELLM_RELEASE_TAG" \
  -f deploy/lens/Dockerfile -t "$LENS_WORKER_IMAGE" .
export LITELLM_MASTER_KEY="${LITELLM_MASTER_KEY:-sk-$(openssl rand -hex 16)}"
docker compose -f docker/docker-compose.tracing.yml up -d --build

Replace sk-... with your OpenAI key, or configure another provider in docker/tracing-config.yaml before starting. The first build takes several minutes. Both images are built locally from the same checkout

Open http://localhost:4002/ui/ and sign in as admin with your LITELLM_MASTER_KEY

2. Connect the worker

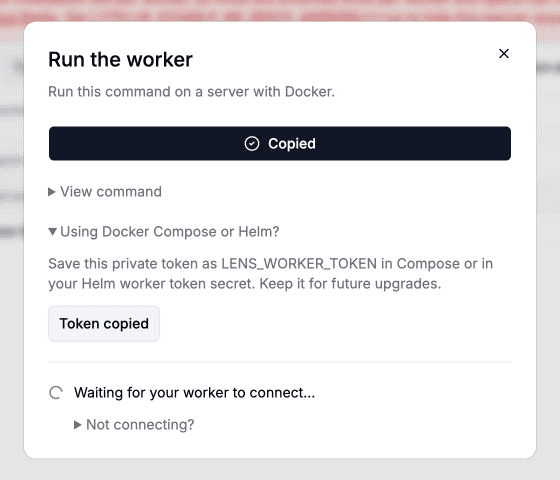

Go to Lens > Investigations > Connect worker, choose the analysis model and monthly budget, then Get install command. Expand Using Docker Compose or Helm? and copy the worker token

In the same terminal, start the worker on the gateway's Docker network:

export LITELLM_URL=http://litellm:4000
export LENS_WORKER_TOKEN='<paste-your-worker-token>'
docker compose -f docker/docker-compose.tracing.yml -f deploy/lens/compose.yaml up -d

When the dashboard shows Worker connected, send your first trace. Keep the token private and save it for restarts and upgrades

This stack is for local evaluation. It binds to localhost and uses development database credentials. For a hosted installation, use your normal ingress, private credentials, and database backups. Preserve both database volumes; do not use docker compose down -v when upgrading

Existing LiteLLM

Keep your existing LiteLLM installation and PostgreSQL database. For a new Lens setup, use a source deployment with Lens support. Record the exact source commit and LITELLM_RELEASE_TAG used to build your running gateway; the worker needs both to match

There is no need to switch deployment tools or start a second proxy. Preserve your configuration, DATABASE_URL, LITELLM_MASTER_KEY, and LITELLM_SALT_KEY. If your proxy runs without PostgreSQL, connect a database before enabling Lens

If you already use Compose, add the worker service to your existing project and set LENS_WORKER_IMAGE to the matching worker. Keep the existing database volumes and project name; the new-installation recipe creates fresh databases and keys

1. Enable trace storage

If tracing already works, skip to the worker. Otherwise, run ClickHouse where LiteLLM can reach it:

docker run -d --name litellm-clickhouse --restart unless-stopped \
  -e CLICKHOUSE_USER=default \
  -e CLICKHOUSE_PASSWORD='<clickhouse-password>' \
  -e CLICKHOUSE_DEFAULT_ACCESS_MANAGEMENT=1 \
  -v clickhouse_data:/var/lib/clickhouse \
  -p 8123:8123 \
  clickhouse/clickhouse-server:26.9.6.6

Enable tracing with CLICKHOUSE_URL=http://default:<clickhouse-password>@<clickhouse-host>:8123, then restart LiteLLM. Keep the ClickHouse port accessible only to your proxy

2. Prepare the matching worker image

Public source workers use ghcr.io/berriai/litellm-lens-worker-dev:sha-<full-commit>. They support amd64 and publish on Lens-related changes. Use one only when its commit and sha-<full-commit> release identity match your gateway. Check that the exact image exists:

docker buildx imagetools inspect \
  'ghcr.io/berriai/litellm-lens-worker-dev:sha-<full-commit>'

If the image is unavailable, your gateway uses a different release identity, or you need native arm64, check out the gateway's exact source revision and build the worker there:

export LITELLM_RELEASE_TAG='<gateway-release-identity>'
export LENS_WORKER_IMAGE='<your-registry>/litellm-lens-worker:<your-image-tag>'
docker build --build-arg LITELLM_RELEASE_TAG="$LITELLM_RELEASE_TAG" \
  -f deploy/lens/Dockerfile -t "$LENS_WORKER_IMAGE" .

For another Docker host or a hosting service, publish the image to a registry that host can pull from. Configure LENS_WORKER_IMAGE on the gateway to that image, preferably by digest, and restart through your normal deployment process. Keep the gateway's existing release identity; changing it does not make a different worker compatible

3. Connect the worker

Open Lens > Investigations > Connect worker, choose an analysis model and monthly budget, then Get install command. Run it on a Docker host that has the matching image and can reach your proxy. Wait for Worker connected, then send your first trace

Standalone image, Render, and worker-only Compose

On Render or another container host, use the matching standalone worker image. Set LITELLM_URL to your proxy's reachable base URL, without /v1, and LENS_WORKER_TOKEN to the token copied from Using Docker Compose or Helm? in setup. The worker needs outbound access to LiteLLM and no inbound port

For worker-only Compose, download deploy/lens/compose.yaml and use a private .env file:

LENS_WORKER_IMAGE=<matching-worker-image>
LITELLM_URL=https://your-litellm-proxy
LENS_WORKER_TOKEN=<paste-your-worker-token>

Run docker compose up -d. Keep LENS_WORKER_IMAGE matched to your gateway when upgrading

Kubernetes (Helm)

Use the componentized source chart at helm/litellm from the same checkout as your gateway. The chart includes the optional worker; PostgreSQL and ClickHouse are configured separately. For a new installation, deploy LiteLLM and its database connections first. For an existing installation, keep your release, values, and databases

Configure ClickHouse tracing, then open Lens > Investigations > Connect worker and get a worker token. If you use a different chart or manage Kubernetes manifests yourself, you can keep that setup and deploy the standalone worker image instead

Store the token in a Secret named litellm-lens-worker, under key token, in the same namespace as LiteLLM. Use your existing secret manager, or save token=<paste-your-worker-token> in a private file and create the Secret:

kubectl -n litellm create secret generic litellm-lens-worker \
  --from-env-file=/path/to/private/lens-worker.env

Build or select the worker image using the Existing LiteLLM instructions. Add its repository and digest to your existing Helm values:

values.yaml

lensWorker:
  enabled: true
  image:
    repository: <your-worker-image-repository>
    digest: sha256:<matching-worker-image-digest>
  tokenSecret:
    name: litellm-lens-worker
    key: token

Keep your existing component image overrides and database settings in values.yaml. They must name images built from the same source commit and release identity as the worker. From that source checkout, use your existing release name and namespace:

helm upgrade --install litellm ./helm/litellm \
  --namespace litellm -f values.yaml

The chart uses your selected images and connects the worker to the backend. Connect worker supplies the same digest-pinned image selected in your values. The worker digest must match the gateway's source commit and release identity. Keep the values and Secret for future upgrades. lensWorker.replicaCount controls simultaneous investigations; lensWorker.image.repository, lensWorker.image.digest, and lensWorker.url support private registries and external proxies

Upgrade LiteLLM and the worker

You choose when to upgrade. Publishing a new release does not update existing containers. Build LiteLLM and the worker from the same source commit and release identity; PostgreSQL and ClickHouse have their own versions and do not need upgrading with every LiteLLM release

Review the changes, back up your databases, pause scheduled investigations, and let active investigations finish before upgrading. Preserve your configuration, database volumes, master key, salt key, and worker token. Worker setup is performed once; you do not need a new token for each release

Docker Compose

For the local tracing stack, stop the worker before changing your source checkout:

docker compose -f docker/docker-compose.tracing.yml -f deploy/lens/compose.yaml stop lens-worker

Select the new source revision and repeat the build commands in New local installation. Keep the same Compose project, database volumes, and saved worker token. Start the worker with both Compose files once the gateway is ready:

docker compose -f docker/docker-compose.tracing.yml -f deploy/lens/compose.yaml up -d

This updates LiteLLM and the worker while retaining the databases. Do not regenerate keys or run down -v

If you added the worker to your own Compose project, update its explicit image together with your gateway image. If Compose manages only the worker, upgrade LiteLLM separately first, update LENS_WORKER_IMAGE, then run docker compose pull and docker compose up -d

Docker or hosted worker

Stop the worker after active investigations finish, then upgrade LiteLLM using your usual deployment process. Recreate the worker with an image built from the upgraded gateway's source commit and release identity. Make that image available on the Docker host or in an accessible registry before upgrading

For a worker started with docker run, use your saved install command with the new image reference and remove the stopped container after its replacement connects. Keep its proxy URL, token, and runtime options. For Render or another container host, update the existing worker service's image reference and redeploy it, keeping its environment settings

Helm

Use the source chart from the selected gateway checkout. Update your component and worker image overrides in your existing values; preserve the release name, namespace, and token Secret. Keep workers paused until all LiteLLM pods have finished upgrading, then restore the worker count from your values:

helm upgrade litellm ./helm/litellm \
  --namespace litellm -f values.yaml \
  --set lensWorker.replicaCount=0 --wait

kubectl -n litellm wait --for=delete pod \
  -l app.kubernetes.io/instance=litellm,app.kubernetes.io/component=lens-worker \
  --timeout=120s

helm upgrade litellm ./helm/litellm \
  --namespace litellm -f values.yaml --wait

The chart uses the matching images you selected in your values. Pinning the worker by digest keeps the selected image across restarts even if its registry tag changes. The first Helm command pauses investigations while the gateway and backend update. Wait for the old worker pods to stop, then the final command resumes them with the same token. Use your own release name in the pod selector if it differs from litellm. Avoid running different LiteLLM versions against the same Lens data after investigations resume

Update both image tags and digests in your values so neither component remains on an older build. A worker digest takes precedence over its tag. Custom charts and separately managed worker deployments must update both image versions through their normal deployment process

After any upgrade, check for Worker connected in the dashboard, run an investigation, and restore any schedules you paused. The gateway checks compatibility before handing out work. An outdated worker waits with an upgrade message, leaving queued investigations untouched; update its image to resume work

Hourly development deployments build the gateway and worker from the same selected commit

For development from source, use make lens-dev. Custom container builds must use the same checkout and release identity for both components; follow the source build instructions. A build without that identity refuses worker setup instead of suggesting an unrelated image

Deploy with a coding agent

Claude CodeCodex

Paste this into Claude Code or Codex on the machine you want to deploy to.

Show prompt

Deploy LiteLLM Lens on this machine by following https://docs.litellm.ai/docs/proxy/lens/deployment

1. If a LiteLLM proxy is already running, keep it and its PostgreSQL database. Otherwise follow New local installation, building the gateway and worker from the same checkout and release identity.
2. For an existing proxy, configure ClickHouse tracing using the Existing LiteLLM tab. Check POST /v1/traces and GET /v1/traces with a LiteLLM key.
3. Ask me to open Lens > Investigations > Connect worker, select a model and budget, and get a worker token. For the local stack, start the worker with both Compose files. For an existing proxy, confirm its generated command names an available matching image, then run it.
4. Confirm the dashboard shows "Worker connected". Keep LiteLLM and the worker on the same source commit and release identity for future upgrades.

Never print or commit keys, worker tokens, or passwords. Ask me before replacing an existing container, database, or config.

Configure an existing proxy

Add this to config.yaml:

general_settings:
  tracing:
    store:
      type: clickhouse

Set CLICKHOUSE_URL to the ClickHouse HTTP address your proxy can reach. CLICKHOUSE_DATABASE defaults to litellm. You can set CLICKHOUSE_READER_URL to use a separate read-only account; otherwise reads use CLICKHOUSE_URL.

Investigations also need PostgreSQL, a configured analysis model, and a connected Lens worker. Keep the proxy and worker versions compatible. See the tracing config and worker setup guide for deployment details.
