LangGraph

Call LangGraph agents through LiteLLM using the OpenAI chat completions format.

Property	Details
Description	LangGraph is a framework for building stateful, multi-actor applications with LLMs. LiteLLM supports calling LangGraph agents via their streaming and non-streaming endpoints.
Provider Route on LiteLLM	langgraph/{agent_id}
Provider Doc	LangGraph Platform ↗

Prerequisites: You need a running LangGraph server. See Setting Up a Local LangGraph Server below.

Quick Start

Model Format

Model Format

langgraph/{agent_id}

Example:

• langgraph/agent - calls the default agent

LiteLLM Python SDK

Basic LangGraph Completion

import litellm

response = litellm.completion(
    model="langgraph/agent",
    messages=[
        {"role": "user", "content": "What is 25 * 4?"}
    ],
    api_base="http://localhost:2024",
)

print(response.choices[0].message.content)

Streaming LangGraph Response

import litellm

response = litellm.completion(
    model="langgraph/agent",
    messages=[
        {"role": "user", "content": "What is the weather in Tokyo?"}
    ],
    api_base="http://localhost:2024",
    stream=True,
)

for chunk in response:
    if chunk.choices[0].delta.content:
        print(chunk.choices[0].delta.content, end="")

LiteLLM Proxy

1. Configure your model in config.yaml

config.yaml

LiteLLM Proxy Configuration

model_list:
  - model_name: langgraph-agent
    litellm_params:
      model: langgraph/agent
      api_base: http://localhost:2024

2. Start the LiteLLM Proxy

Start LiteLLM Proxy

litellm --config config.yaml

3. Make requests to your LangGraph agent

Curl

Basic Request

curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $LITELLM_API_KEY" \
  -d '{
    "model": "langgraph-agent",
    "messages": [
      {"role": "user", "content": "What is 25 * 4?"}
    ]
  }'

Streaming Request

curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $LITELLM_API_KEY" \
  -d '{
    "model": "langgraph-agent",
    "messages": [
      {"role": "user", "content": "What is the weather in Tokyo?"}
    ],
    "stream": true
  }'

OpenAI Python SDK

Using OpenAI SDK with LiteLLM Proxy

from openai import OpenAI

client = OpenAI(
    base_url="http://localhost:4000",
    api_key="your-litellm-api-key"
)

response = client.chat.completions.create(
    model="langgraph-agent",
    messages=[
        {"role": "user", "content": "What is 25 * 4?"}
    ]
)

print(response.choices[0].message.content)

Streaming with OpenAI SDK

from openai import OpenAI

client = OpenAI(
    base_url="http://localhost:4000",
    api_key="your-litellm-api-key"
)

stream = client.chat.completions.create(
    model="langgraph-agent",
    messages=[
        {"role": "user", "content": "What is the weather in Tokyo?"}
    ],
    stream=True
)

for chunk in stream:
    if chunk.choices[0].delta.content is not None:
        print(chunk.choices[0].delta.content, end="")

Environment Variables

Variable	Description
LANGGRAPH_API_BASE	Base URL of your LangGraph server (default: http://localhost:2024)
LANGGRAPH_API_KEY	Optional API key for authentication

Supported Parameters

Parameter	Type	Description
model	string	The agent ID in format langgraph/{agent_id}
messages	array	Chat messages in OpenAI format
stream	boolean	Enable streaming responses
api_base	string	LangGraph server URL
api_key	string	Optional API key

Setting Up a Local LangGraph Server

Before using LiteLLM with LangGraph, you need a running LangGraph server.

Prerequisites

• Python 3.11+
• An LLM API key (OpenAI or Google Gemini)

1. Install the LangGraph CLI

uv add "langgraph-cli[inmem]"

2. Create a new LangGraph project

langgraph new my-agent --template new-langgraph-project-python
cd my-agent

3. Install dependencies

uv add -e .

4. Set your API key

echo "OPENAI_API_KEY=your_key_here" > .env

5. Start the server

langgraph dev

The server will start at http://localhost:2024.

Verify the server is running

curl -s --request POST \
  --url "http://localhost:2024/runs/wait" \
  --header 'Content-Type: application/json' \
  --data '{
    "assistant_id": "agent",
    "input": {
      "messages": [{"role": "human", "content": "Hello!"}]
    }
  }'

LiteLLM A2A Gateway

You can register LangGraph agents in LiteLLM's A2A (Agent-to-Agent) Gateway, discover their upstream agent card, curate skills and capabilities, and invoke them through the LiteLLM proxy.

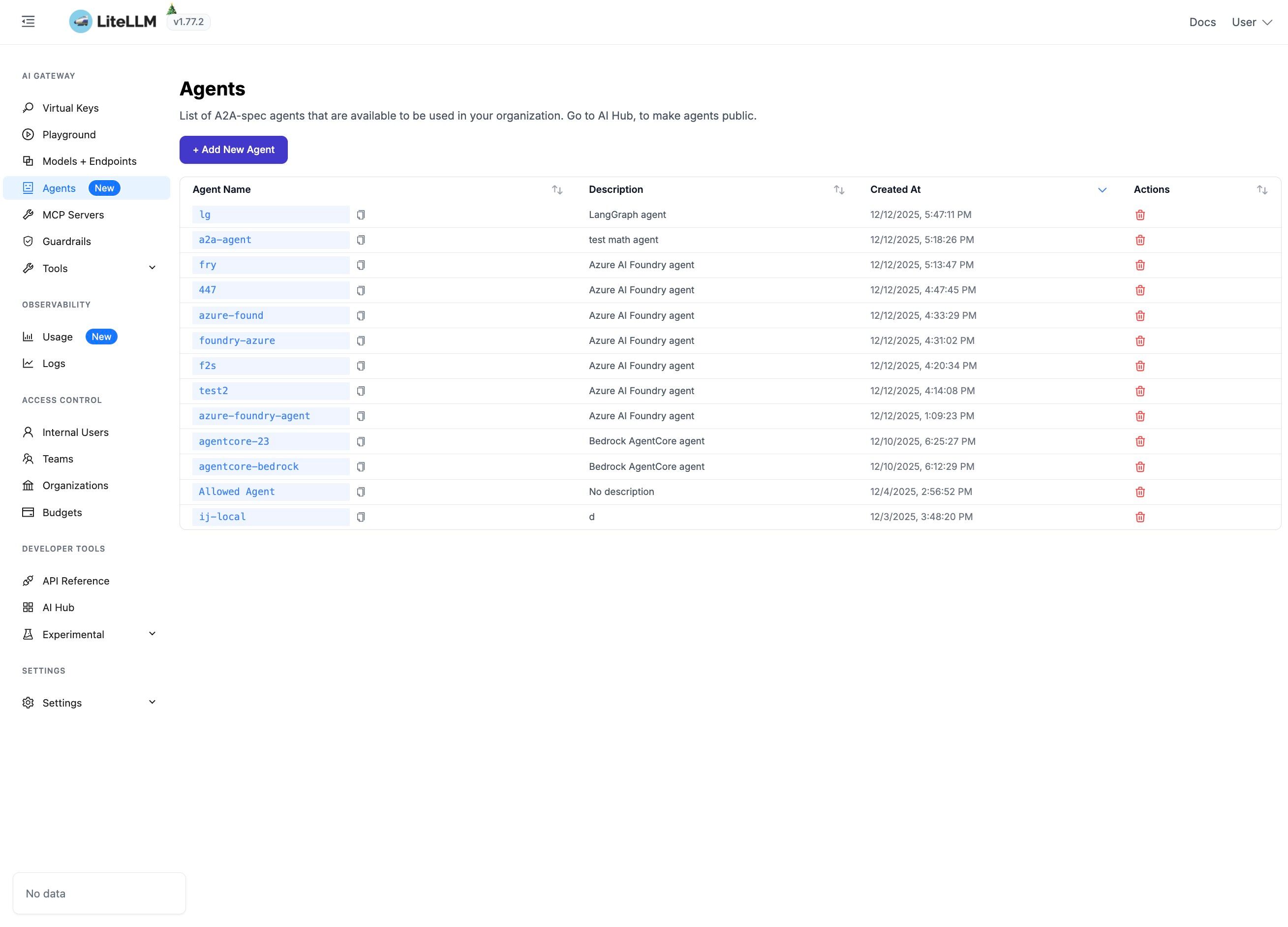

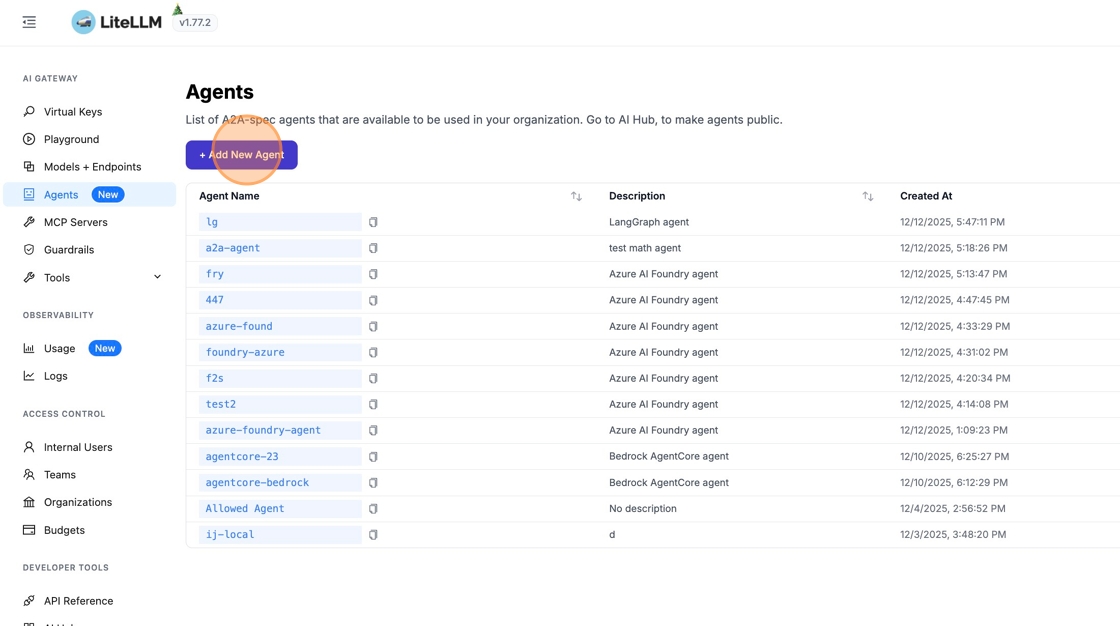

1. Navigate to Agents

From the sidebar, click "Agents" to open the agent management page, then click "+ Add New Agent".

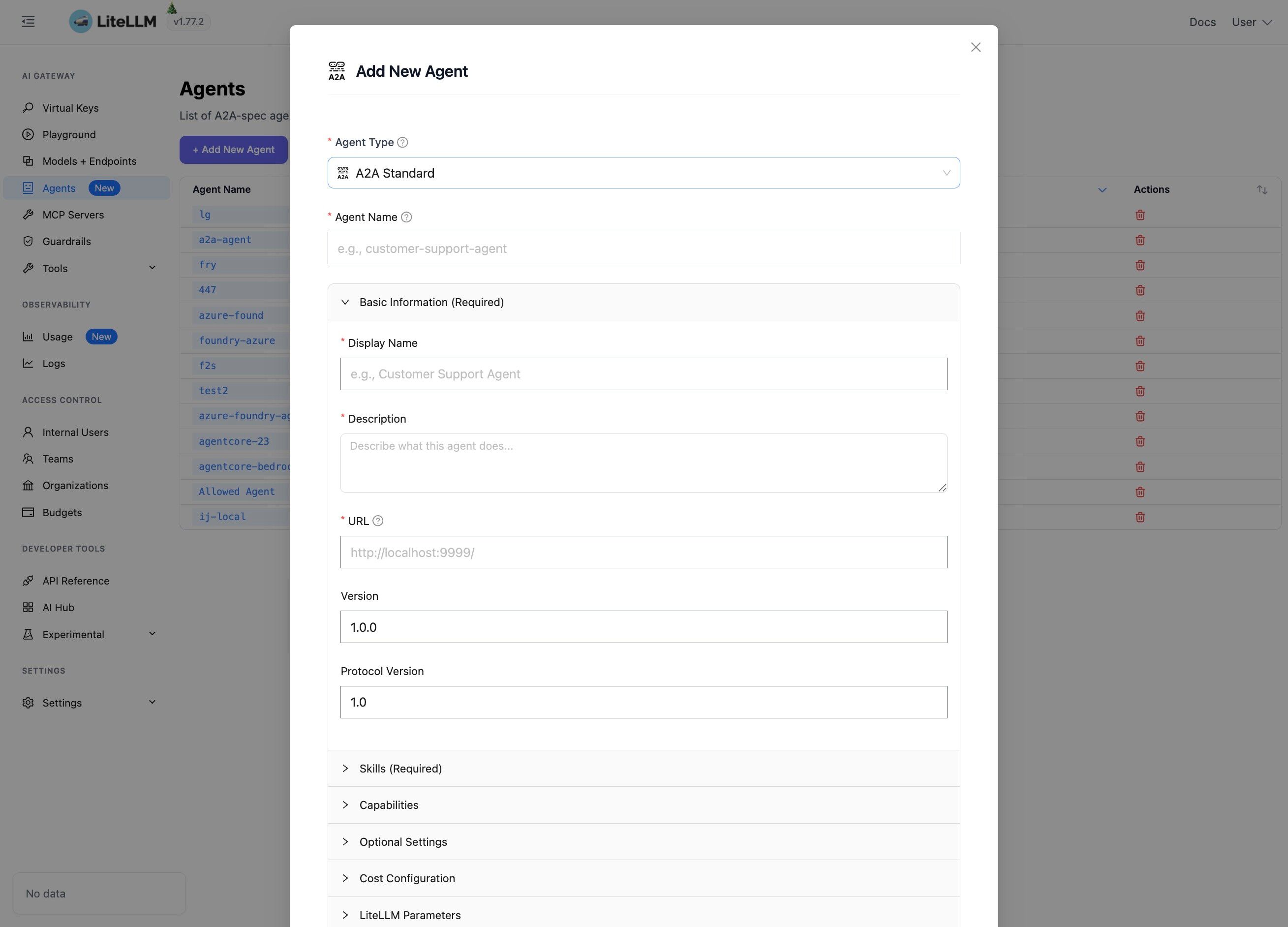

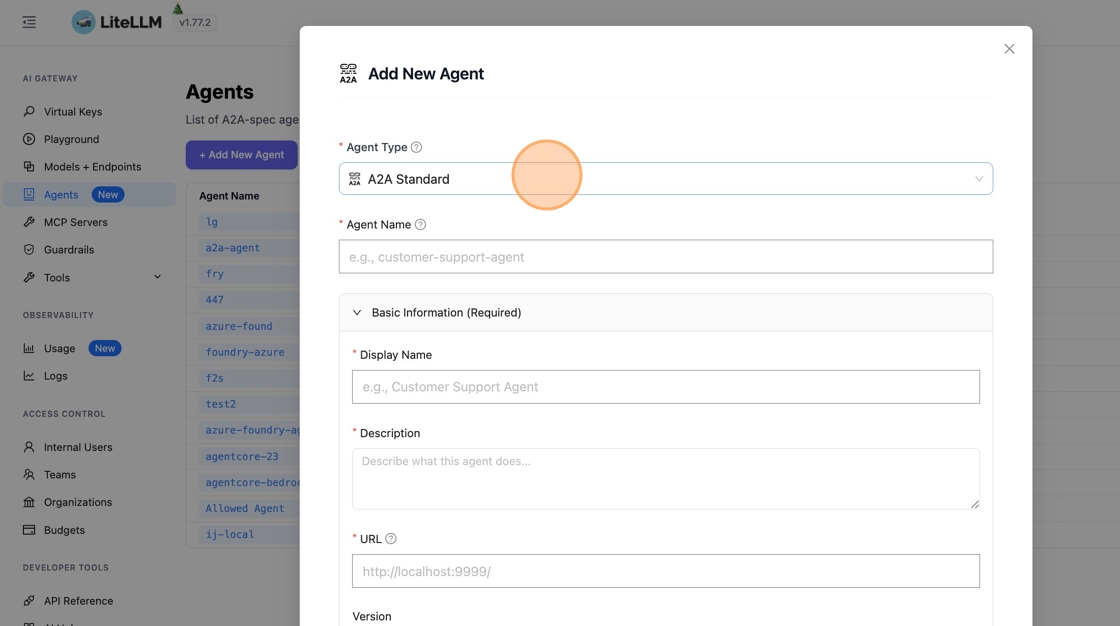

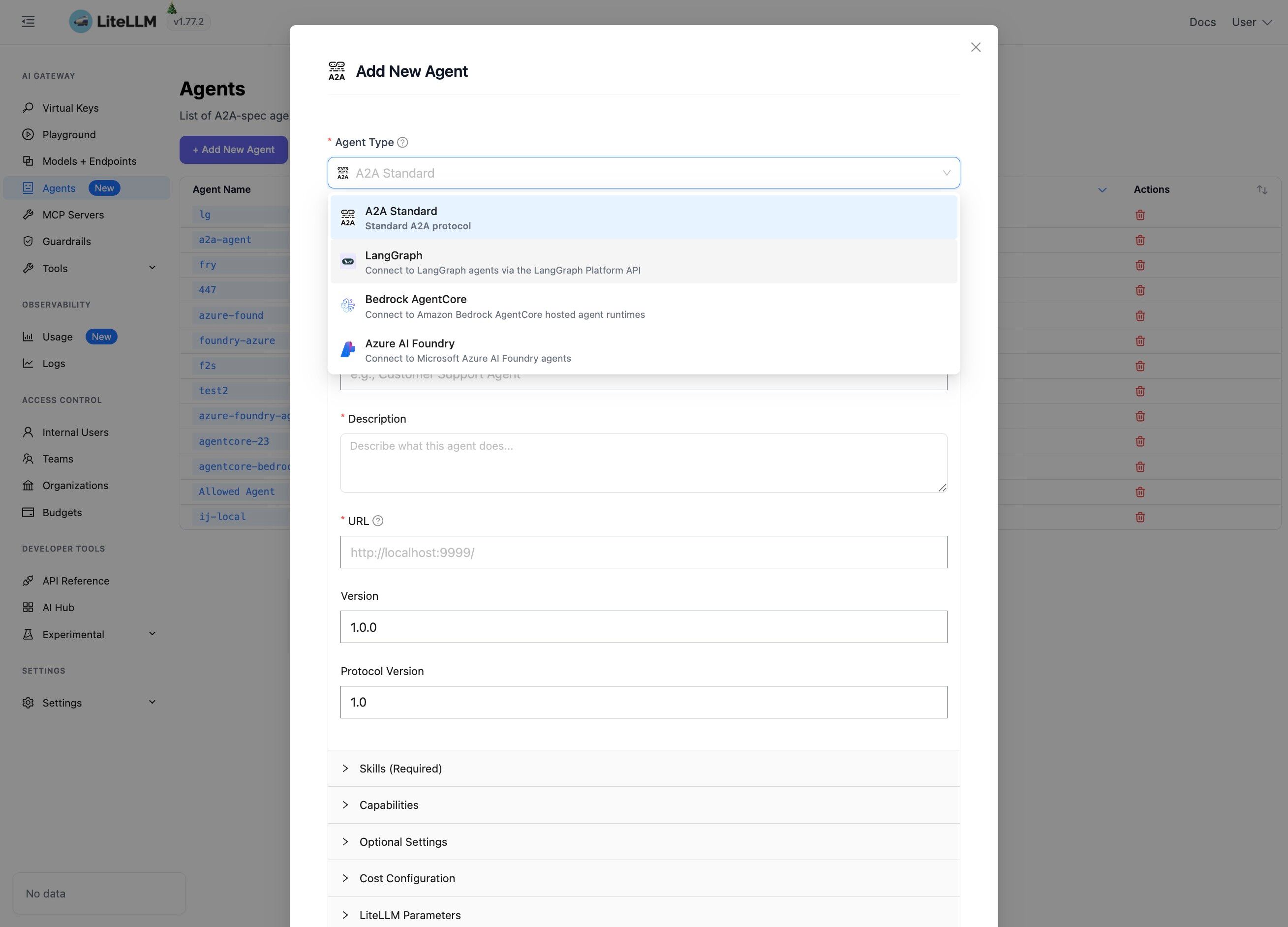

2. Select LangGraph Agent Type

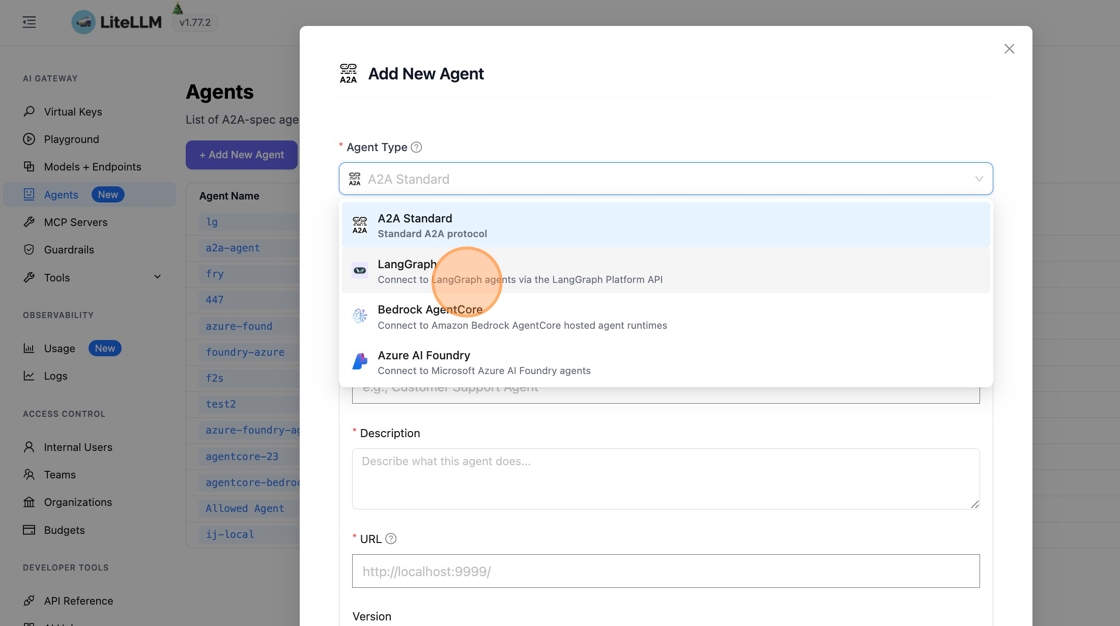

Click "A2A Standard" to see available agent types, then search for "langgraph" and select "Connect to LangGraph agents via the LangGraph Platform API".

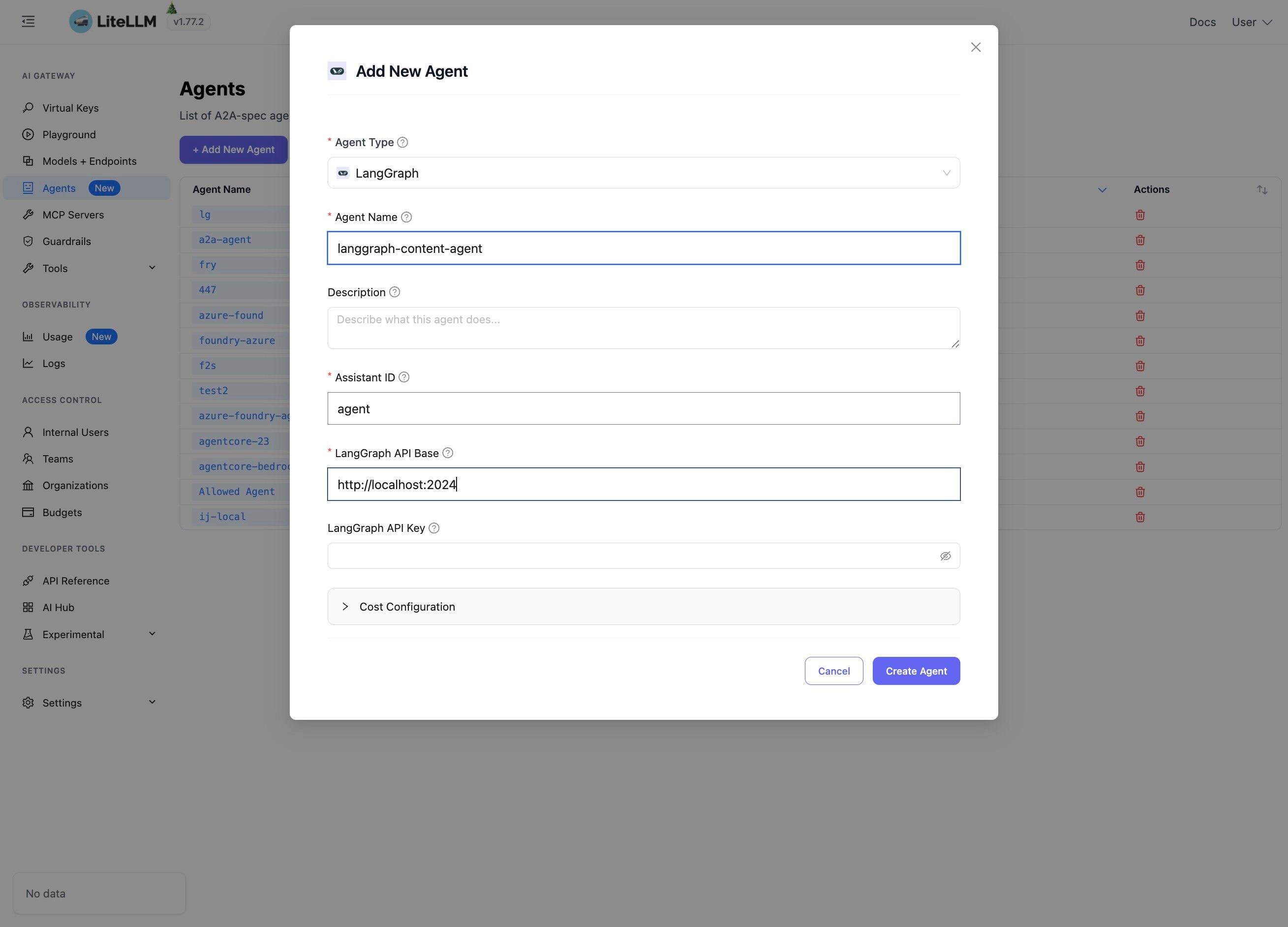

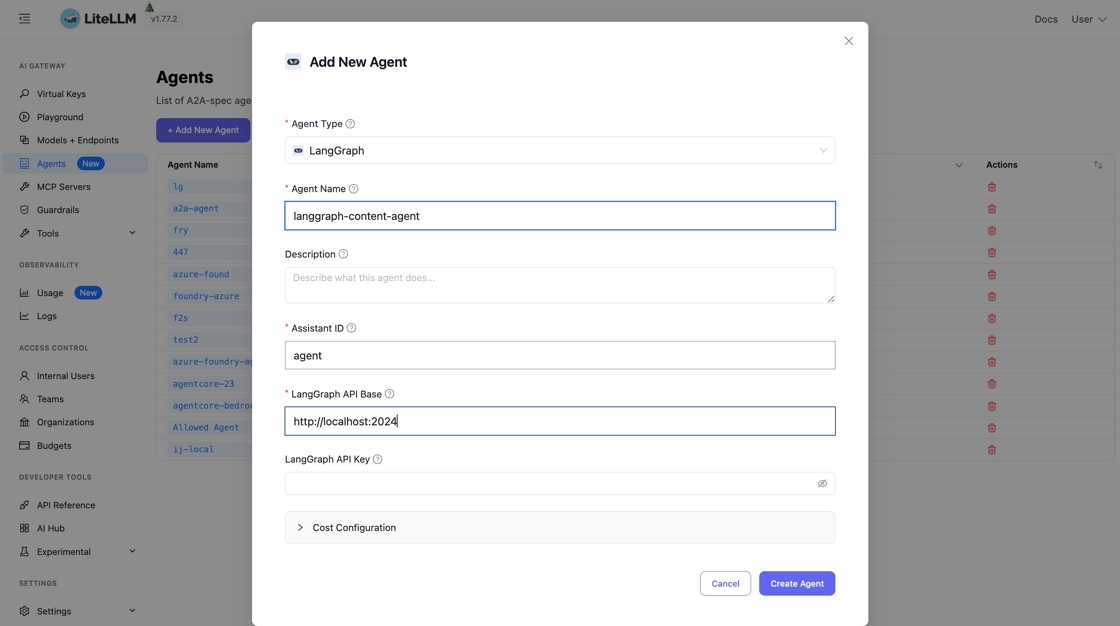

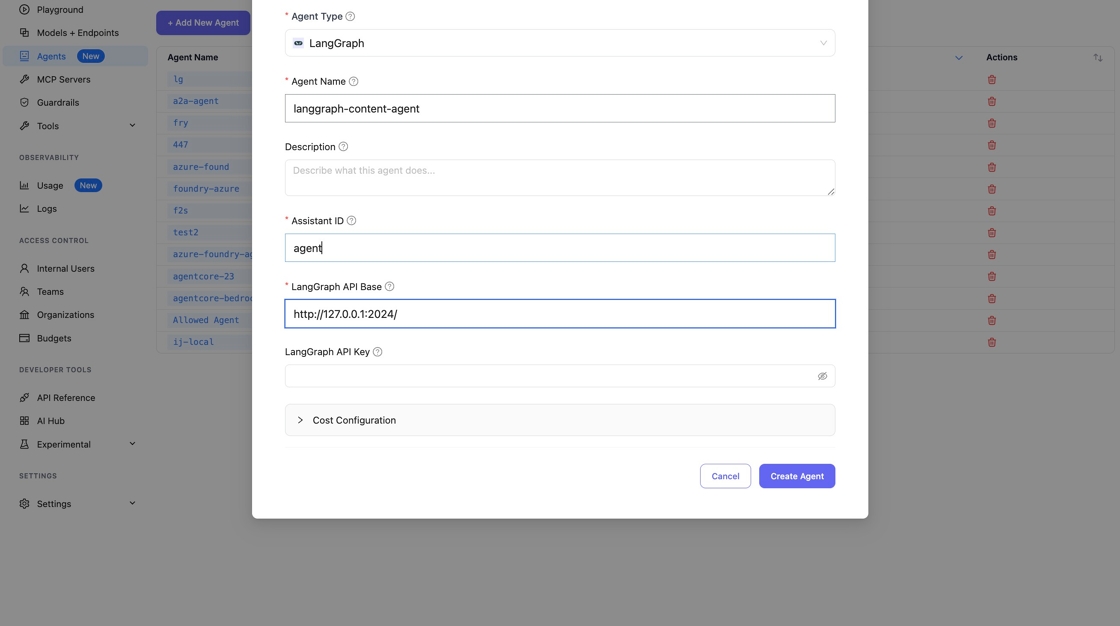

3. Configure the Agent

Fill in the following fields:

• Agent Name - A unique identifier (e.g., lan-agent)
• LangGraph API Base - Your LangGraph server URL, typically http://127.0.0.1:2024/
• API Key - Optional. LangGraph doesn't require an API key by default
• Assistant ID - Not used by LangGraph, you can enter any string here

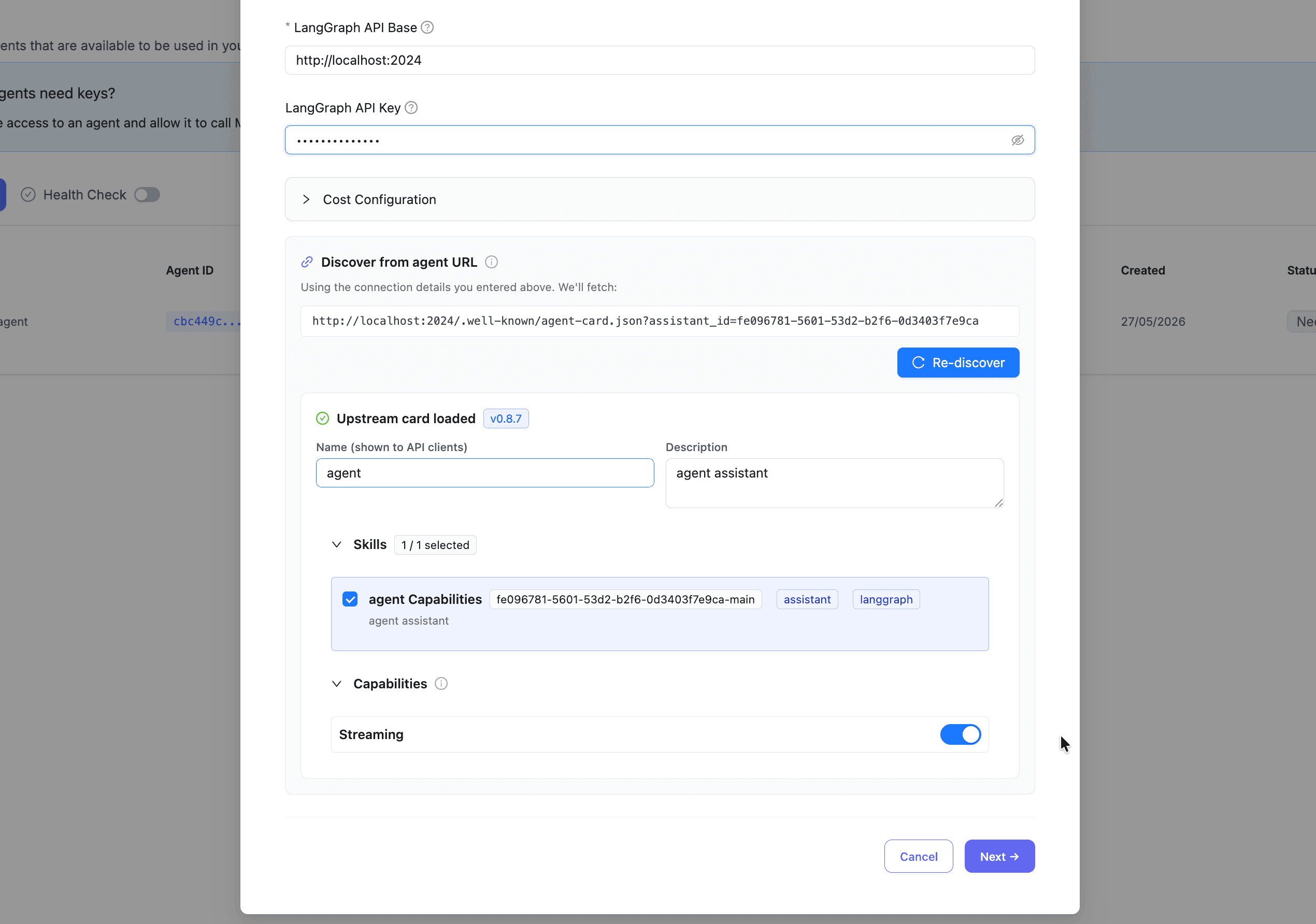

4: Discover the agent card

Discovery runs automatically once the base URL and assistant ID are filled in. You can also trigger it manually from the discovery panel.

The preview is a form. You can:

• Edit the name, description, provider, icon URL, and documentation URL.
• Add, remove, or reorder skills, and edit each skill's name, description, tags, examples, and input/output modes.
• Toggle capabilities that LiteLLM supports.

Select or deselect skills and capabilities before saving. LiteLLM only persists what you keep in the form.

Fields LiteLLM does not proxy are not shown. For the full support matrix, see Agent card support.

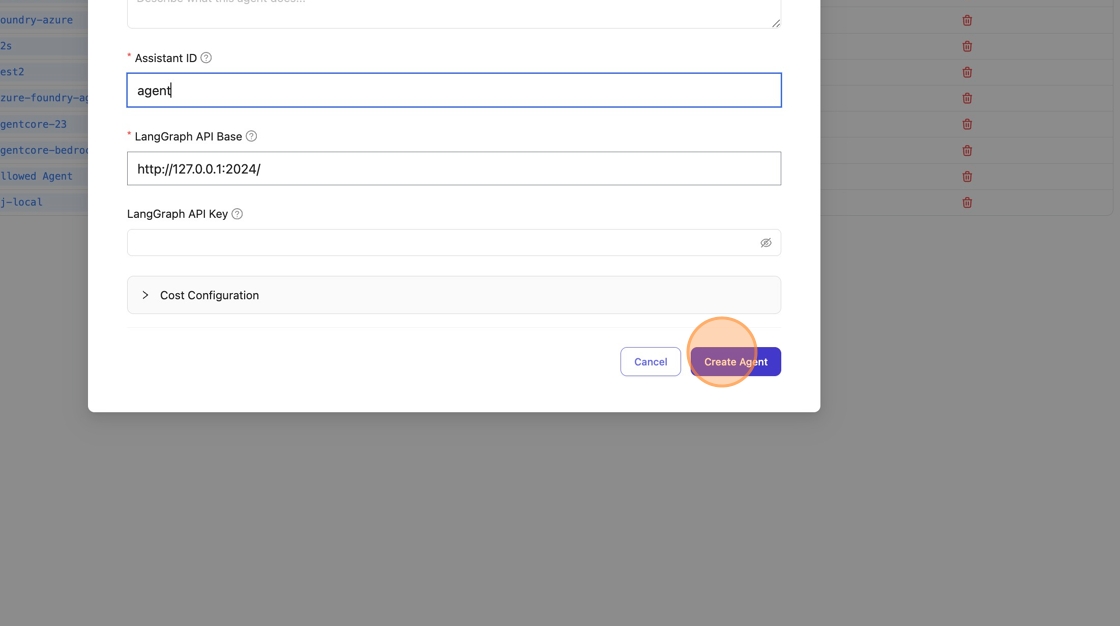

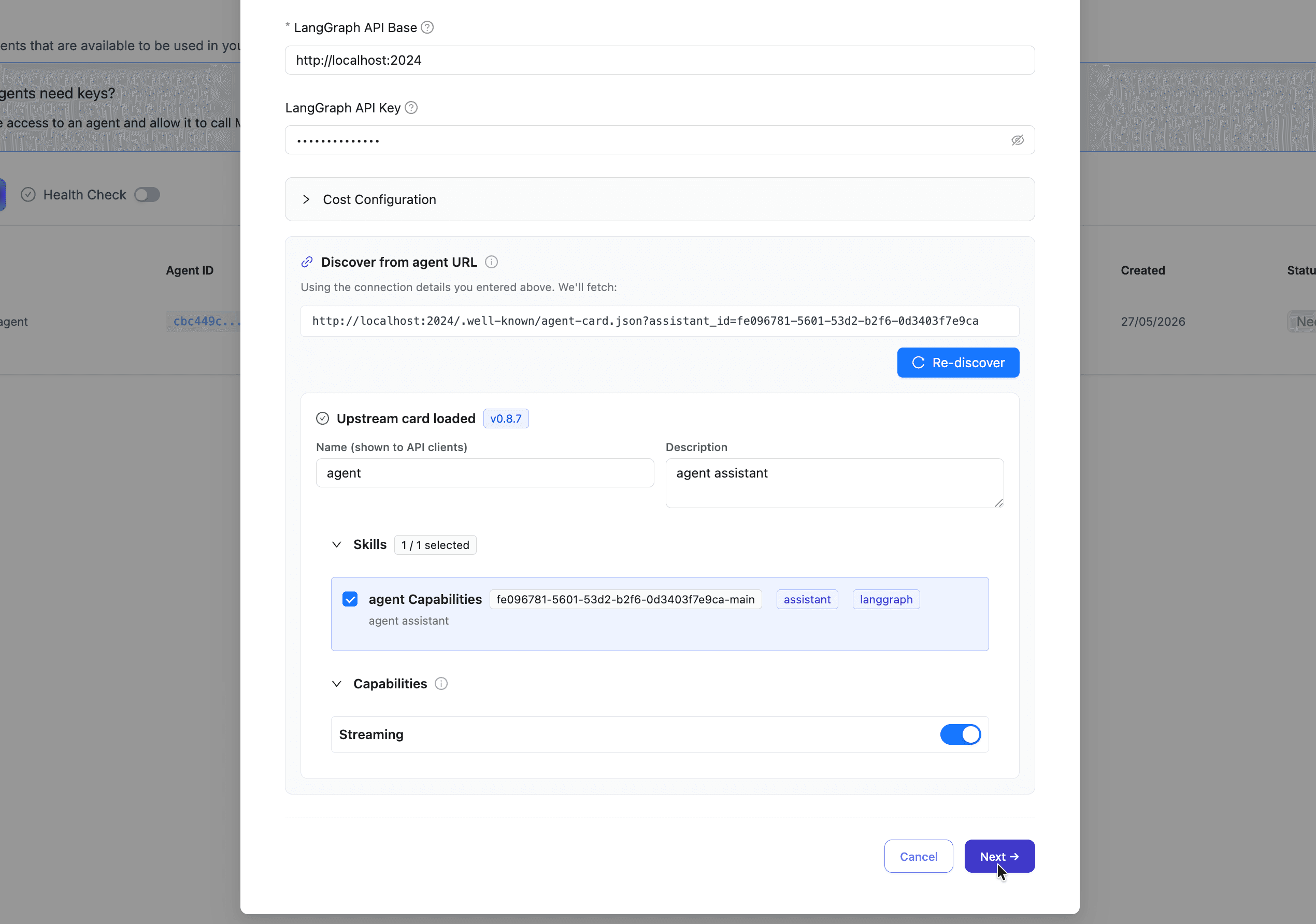

5: Save the agent

Click on Next to save. And complete the rest of the steps

6: Verify the served card

From your terminal, fetch the agent card LiteLLM is serving:

curl -H "Authorization: Bearer sk-1234" \
  http://localhost:4000/a2a/{agent_id}/.well-known/agent.json | jq

You should see the card you saved, with:

• supportedInterfaces[0].url pointing at LiteLLM, not the upstream
• securitySchemes showing LiteLLMKey (HTTP bearer)
• The skills you kept during registration

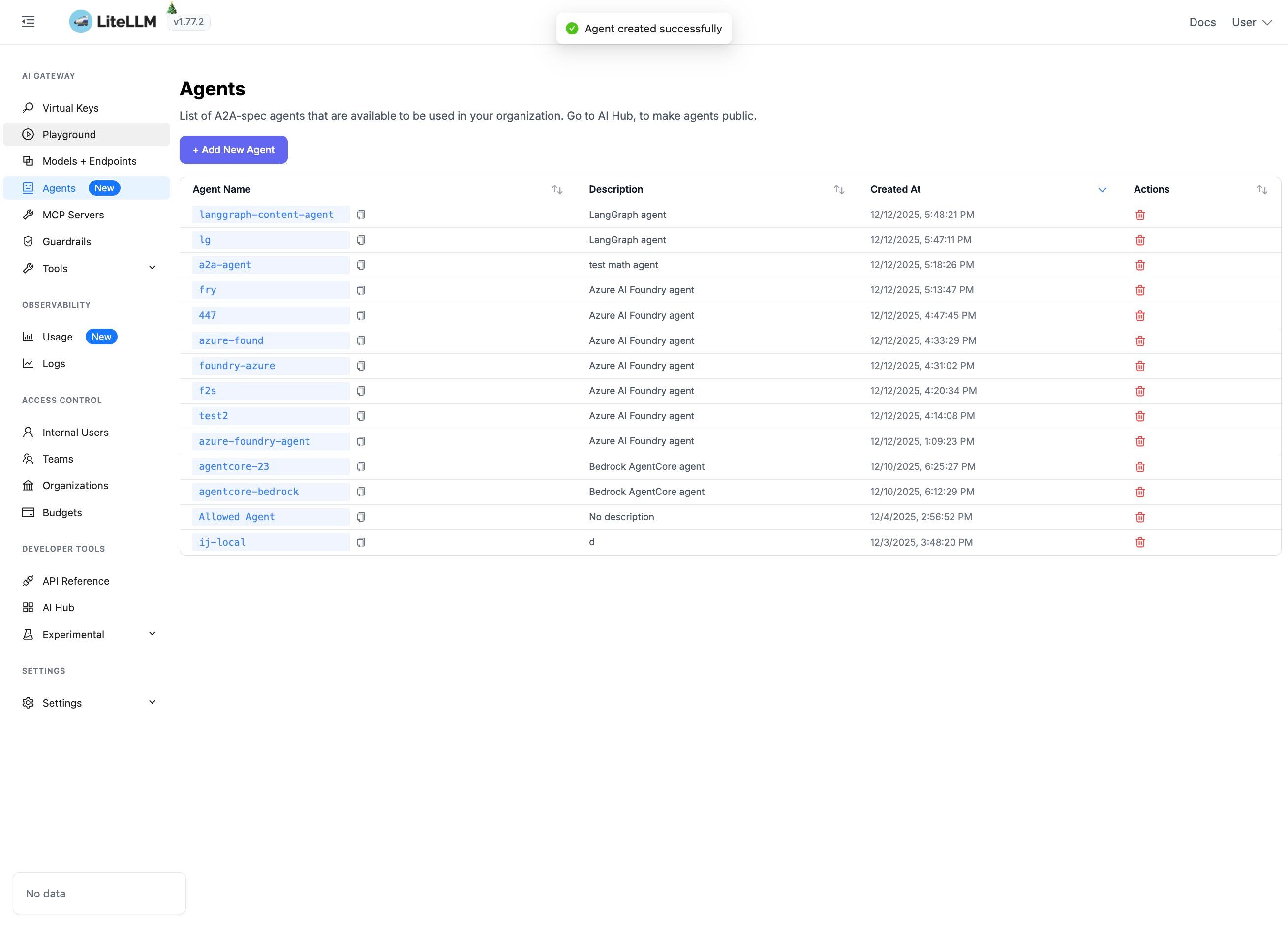

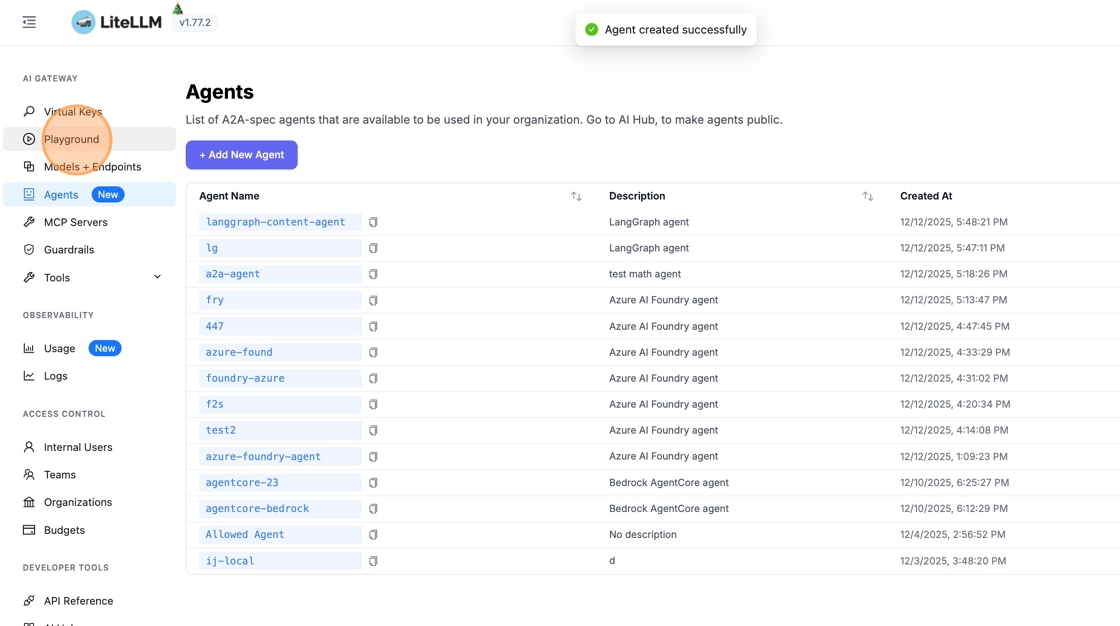

7. Test in Playground

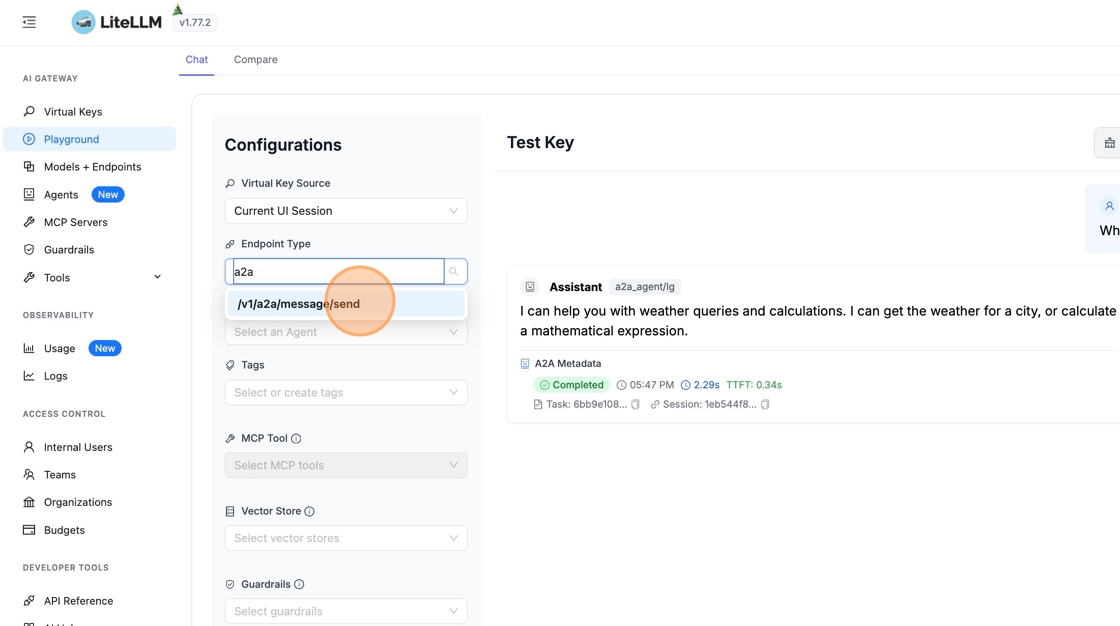

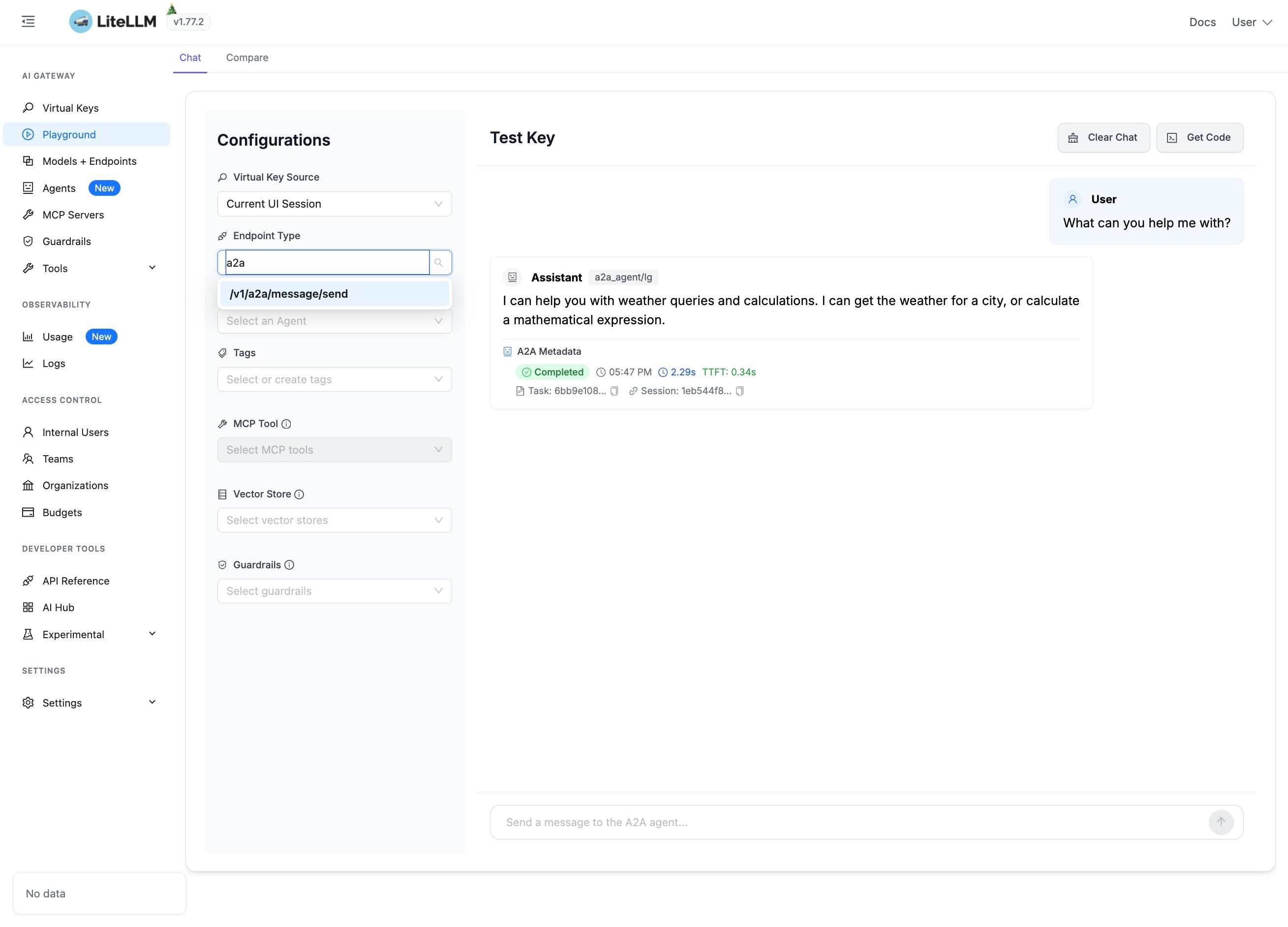

Go to "Playground" in the sidebar to test your agent. Change the endpoint type to /v1/a2a/message/send.

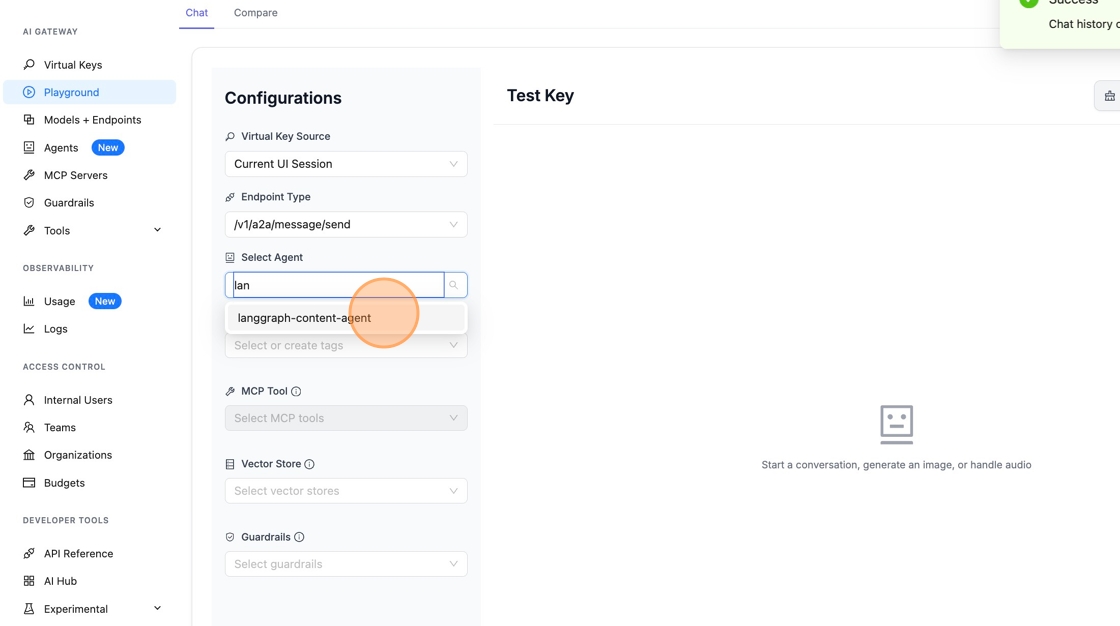

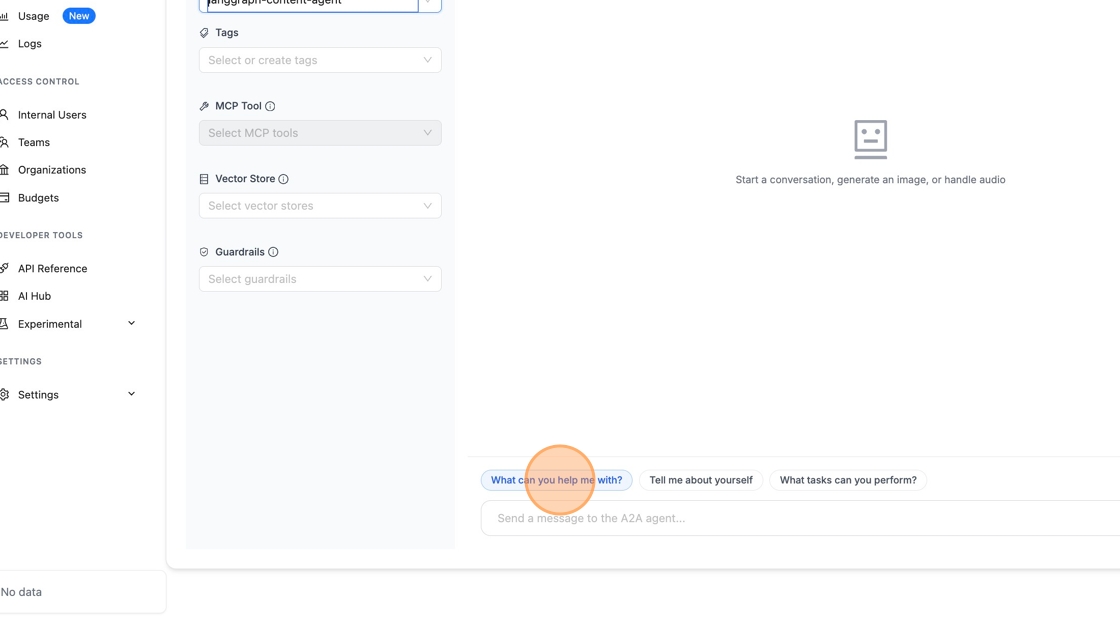

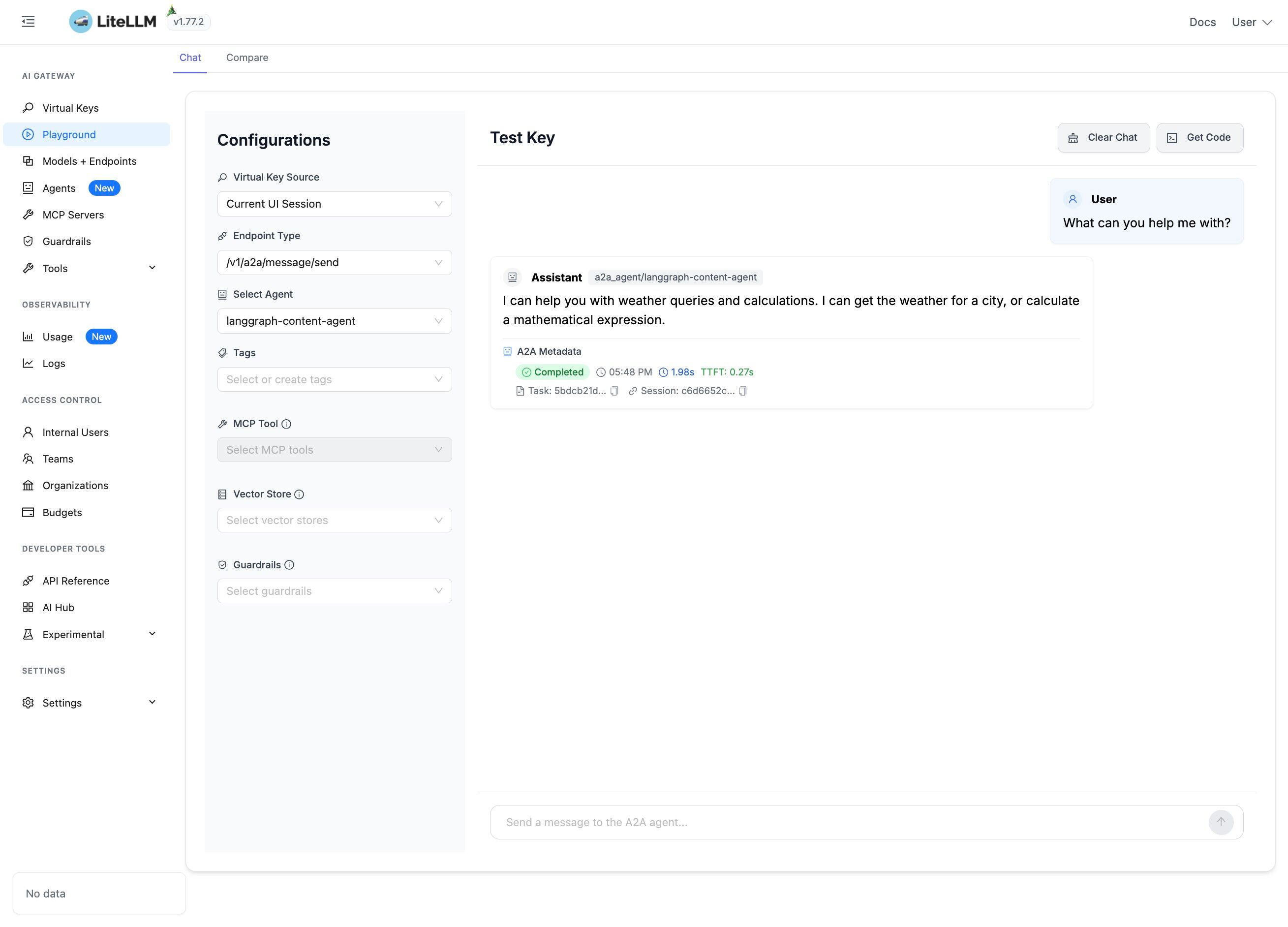

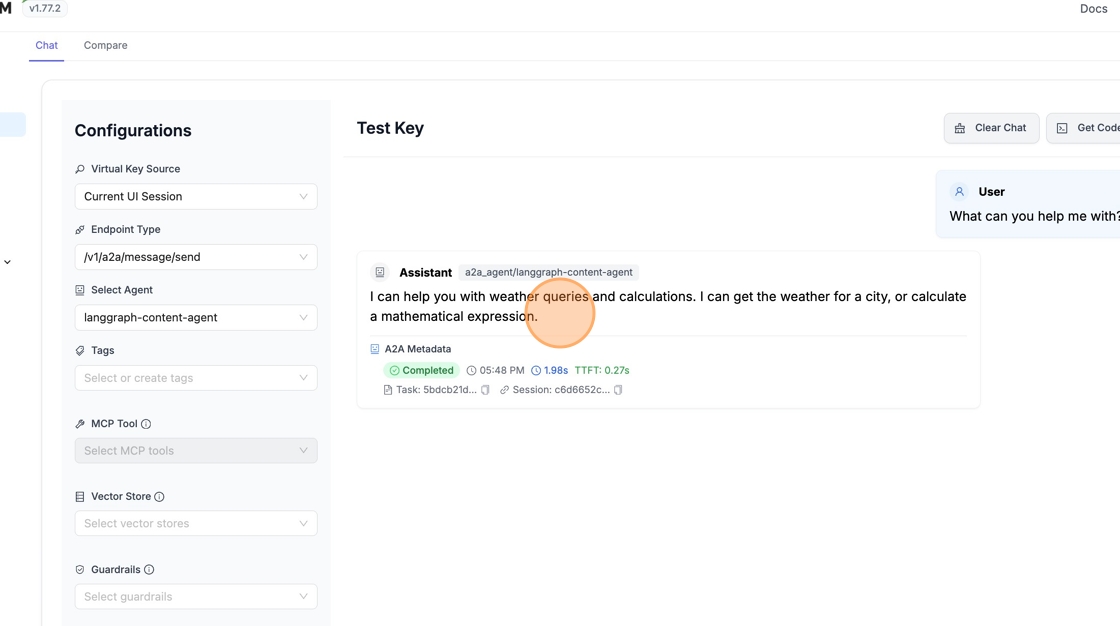

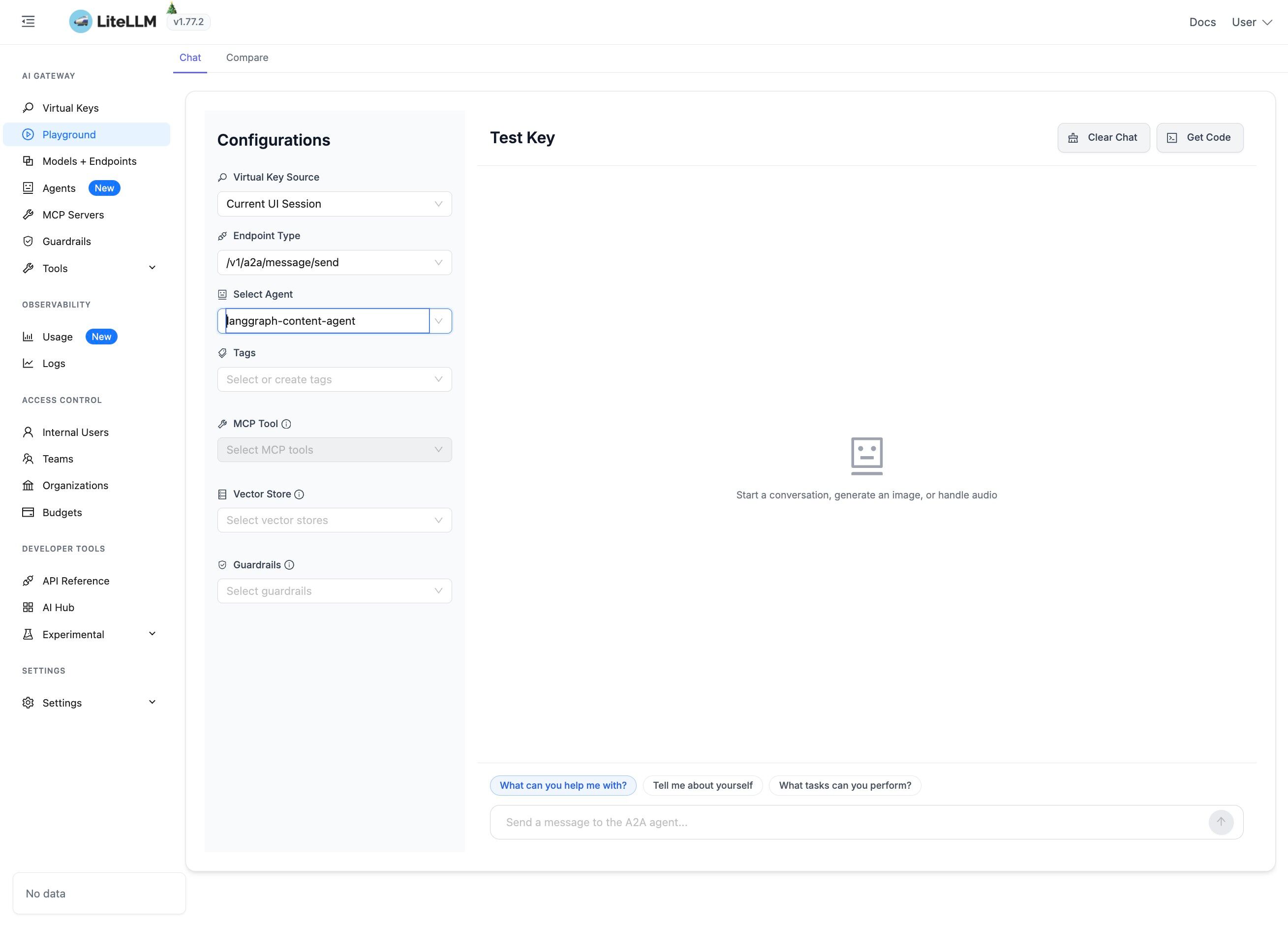

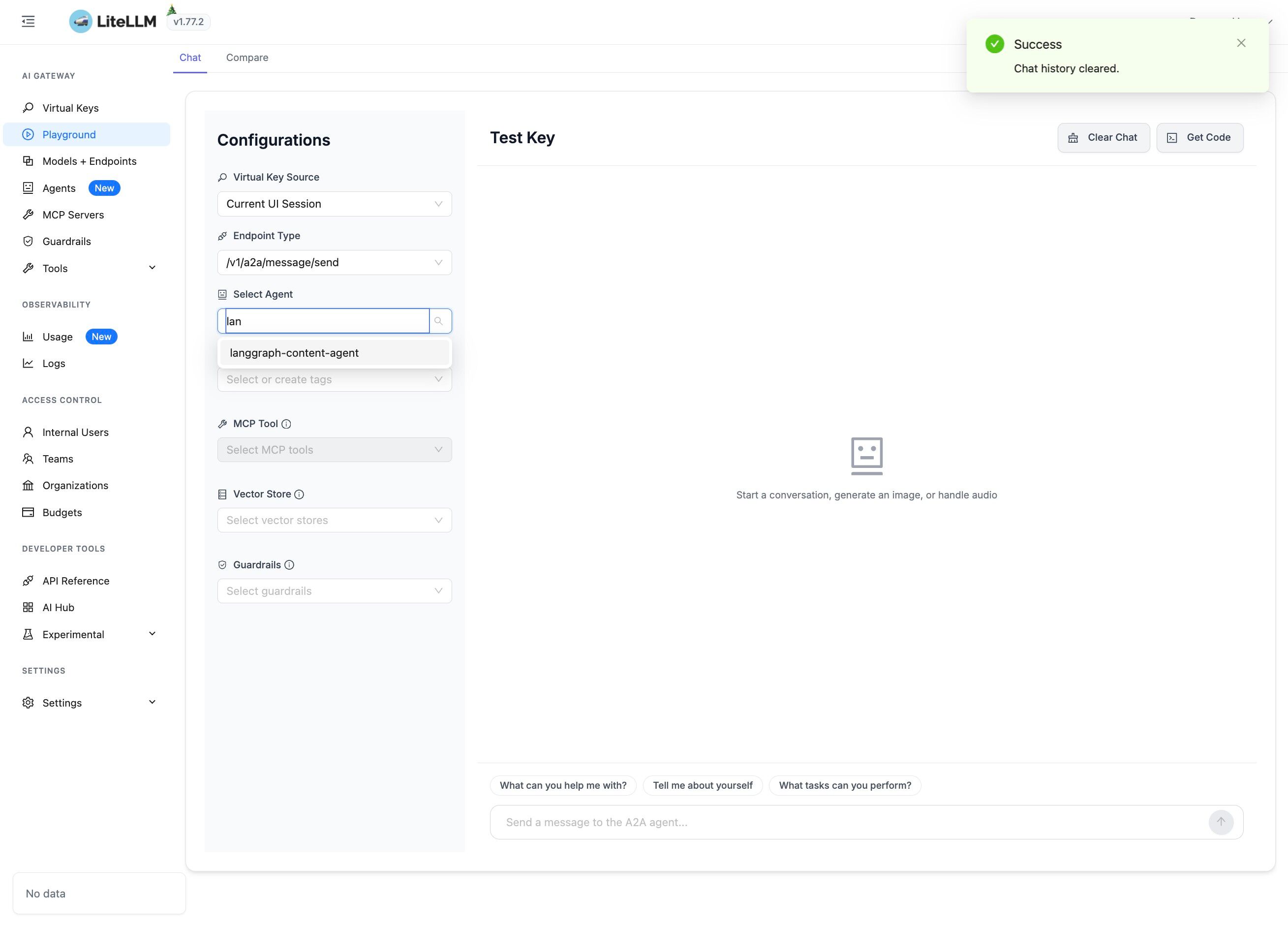

8. Select Your Agent and Send a Message

Pick your LangGraph agent from the dropdown and send a test message.

9: Invoke the agent manually

Send an A2A message/send request to the LiteLLM proxy URL:

curl -X POST http://localhost:4000/a2a/{agent_id} \
  -H "Authorization: Bearer sk-1234" \
  -H "Content-Type: application/json" \
  -H "Accept: application/json" \
  -d '{
    "jsonrpc": "2.0",
    "id": "req-1",
    "method": "message/send",
    "params": {
      "message": {
        "messageId": "msg-001",
        "role": "user",
        "parts": [{"kind": "text", "text": "My order is urgent and still not delivered"}],
        "metadata": {"skillId": "triage_ticket"}
      }
    }
  }'

For streaming, use message/stream and add -N -H "Accept: text/event-stream" to the curl.

See also Invoking A2A Agents for SDK examples.

Further Reading

• LangGraph Platform Documentation
• LangGraph A2A endpoint docs
• LangGraph GitHub
• A2A Agent Gateway
• A2A Agent Card on LiteLLM
• A2A Cost Tracking
• A2A Protocol Specification
